SA37減速機重量：SA37減速機重量6公斤，SA37減速機與電機重量分別如下

SA37減速機與0.12KW電機重量11.5公斤，SA37減速機與0.18KW電機重量12公斤，SA37減速機與0.25KW電機重量16公斤，SA37減速機與0.37KW電機重量16.5公斤，SA37減速機與0.55KW電機重量21公斤，SA37減速機與0.75KW電機重量22公斤，SA37減速機與1.1KW電機重量26公斤。

SA37減速機加油量：可加齒輪油

SA37減速機M3方式安裝加0.5L，SA37減速機M2方式安裝加0.4L，SA37減速機M1方式安裝加0.25L，SA37減速機M4方式安裝加0.5L，SA37減速機M5方式安裝加0.4L，SA37減速機M6方式安裝加0.4L。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整方式安裝時，您必須根據改變后的方式安裝相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速機相應的標準參考潤滑油注入量值。

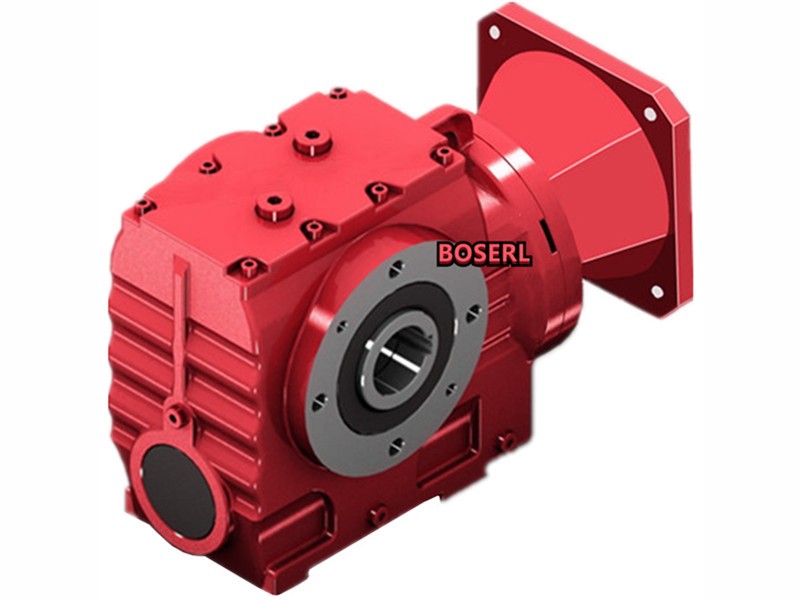

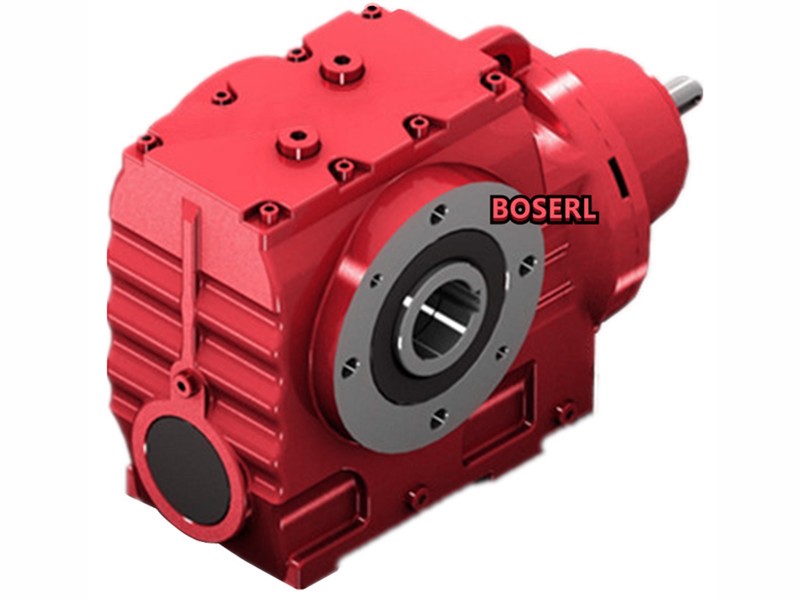

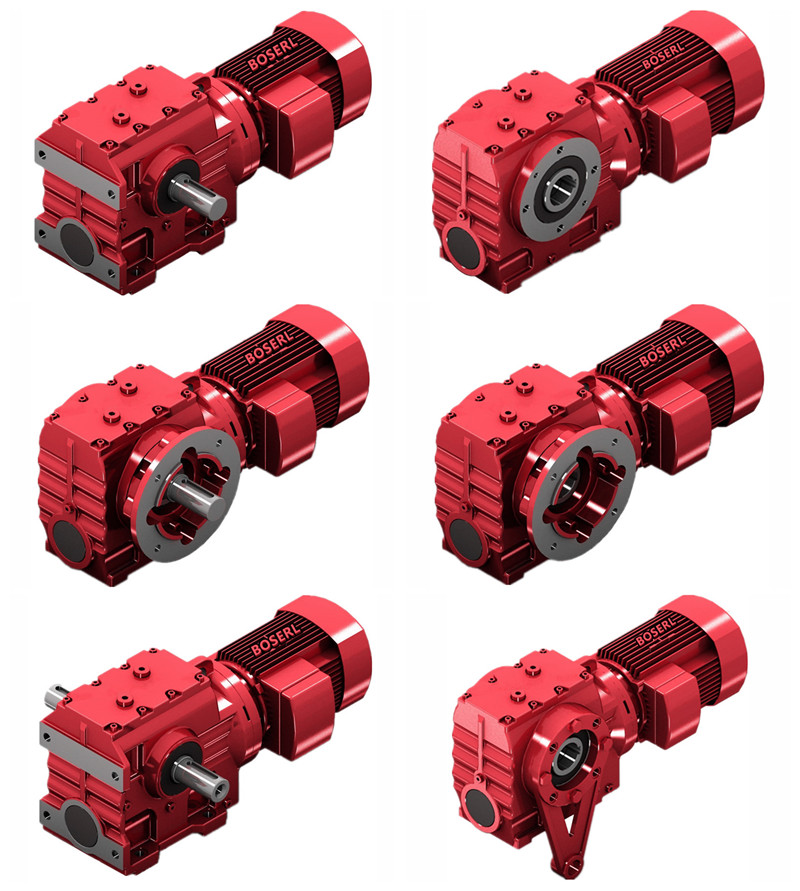

SA37減速機實物圖：圖一為SA37臥式中孔軸斜齒輪蝸輪蝸桿減速電機，圖二S37帶自鎖功能底腳斜齒輪蝸輪蝸桿減速電機，圖三為SF37具有自鎖功能立式斜齒輪蝸輪蝸桿減速電機，圖四為SAF37立式通孔斜齒輪減速機。

SA37減速機型號表示方法：

SA37減速機型號結構SA37-B0.55KW-4P-減速比-方式安裝-接線盒位置。

SA37減速機性能參數表結構說明：K代表服務系數，T扭力臂，E編碼器，F(xiàn)rame size代表基座規格，HF手動釋放裝置帶自鎖功能，TF電機熱保護裝置，SA37、SF37、SA37、SAF37、HR手動釋放裝置，N代表徑向負荷，1/min代表輸出轉數。自鎖減速機

SA37減速機電機接線盒方位說明：本頁附件選型目錄視圖為M1方式安裝，方向為:從電機尾部的風罩向前看?？商峁㏑(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。可提供S和N兩種進線方位，其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。

SA37減速機參數：

SA37減速機減速比：157.43比，144.40比，122.94比，106比，98.80比，86.36比，80.96比，71.44比，63.33比，55.93比，53.83比，51.30比，43.68比，37.66比，35.10比，30.68比，28.76比，25.38比，22.50比，19.89比，19.13比，18.24比，15.53比，13.39比，12.48比，10.91比，10.23比，9.02比，8.00比，6.80比，6.33比，5.38比，4.86比，3.97比。

SA37減速機輸出轉數8.9轉減速機，9.7轉，11轉，13轉，14轉，16轉，17轉，20轉，22轉，25轉，26轉，27轉，32轉，37轉，40轉，46轉，49轉，55轉，62轉，70轉，73轉，77轉，90轉，105轉，112轉，128轉，137轉，155轉，175轉，206轉，221轉，260轉，288轉，353轉。（以上轉數均為四級電機算出的，可用2P、6P、8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為S系列減速機的輸入）

SA37減速機電機可帶三相、直流、變頻、剎車、防爆、伺服、交流、單相電機SA37與0.12KW，SA37與0.18KW，SA37與0.25KW，SA37與0.37KW，SA37與0.55KW，SA37與0.75KW，SA37與1.1KW。

SA37減速機輸出扭矩92N.m，91N.m，88N.m，87N.m，86N.m，85N.m，84N.m，82N.m，81N.m，80N.m，79N.m，78N.m，76N.m，75N.m，74N.m，73N.m，52N.m，71N.m，50N.m，49N.m，48N.m，47N.m，46N.m，45N.m，43N.m，35N.m，34N.m，33N.m，32N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

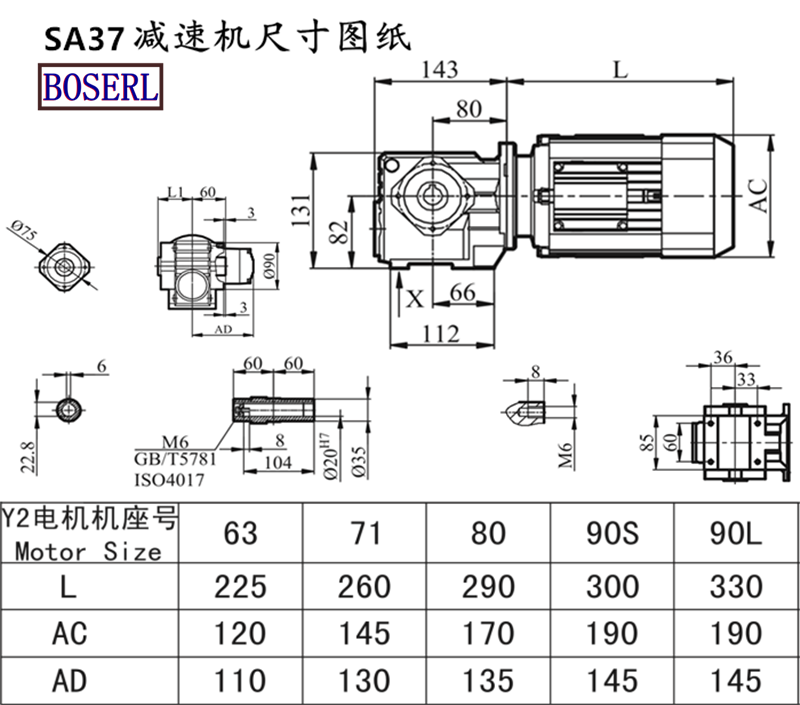

SA37減速機安裝尺寸：高131*寬120*長143

SA37減速機型號：SA37AQA80,SA37AQA100,SA37AQA115,SA37AQA140,SA37AQA160,SA37AQA190,SA37AQH80,SA37AQH100,SA37AQH115,SA37AQH140,SA37AQH160,SA37AQH190,JRTSA37-Y0.12KW,JRTSA37-Y0.18KW,JRTSA37-Y0.25KW,JRTSA37-Y0.A37KW,JRTSA37-Y0.55KW,JRTSA37-Y0.75KW,JRTSA37-Y1.1KW,JRTSA37-Y1.5KW,JRTSA37-Y63M4,JRTSA37-Y71M4,JRTSA37-Y80M4,JRTSA37-Y90M4,JRTSA37-YEJ63M4,JRTSA37-YEJ71M4,JRTSA37-YEJ80M4,JRTSA37-YEJ90M4,JRTSA37-YS63M4,JRTSA37-YS71M4,JRTSA37-YS80M4,JRTSA37-YS90M4,JRTSA37-YVP63M4,JRTSA37-YVP71M4,JRTSA37-YVP80M4,JRTSA37-YVP90M4,JRTSA37-YVPEJ63M4,JRTSA37-YVPEJ71M4,JRTSA37-YVPEJ80M4,JRTSA37-YVPEJ90M4,EWSA37-Y0.12KW,EWSA37-Y0.18KW,EWSA37-Y0.25KW,EWSA37-Y0.A37KW,EWSA37-Y0.55KW,EWSA37-Y0.75KW,EWSA37-Y1.1KW,EWSA37-Y1.5KW,EWSA37-Y63M4,EWSA37-Y71M4,EWSA37-Y80M4,EWSA37-Y90M4,EWSA37-YEJ63M4,EWSA37-YEJ71M4,EWSA37-YEJ80M4,EWSA37-YEJ90M4,EWSA37-YS63M4,EWSA37-YS71M4,EWSA37-YS80M4,EWSA37-YS90M4,EWSA37-YVP63M4,EWSA37-YVP71M4,EWSA37-YVP80M4,EWSA37-YVP90M4,EWSA37-YVPEJ63M4,EWSA37-YVPEJ71M4,EWSA37-YVPEJ80M4,EWSA37-YVPEJ90M4,SLSA37-Y0.12KW,SLSA37-Y0.18KW,SLSA37-Y0.25KW,SLSA37-Y0.A37KW,SLSA37-Y0.55KW,SLSA37-Y0.75KW,SLSA37-Y1.1KW,SLSA37-Y1.5KW,SLSA37-Y63M4,SLSA37-Y71M4,SLSA37-Y80M4,SLSA37-Y90M4,SLSA37-YEJ63M4,SLSA37-YEJ71M4,SLSA37-YEJ80M4,SLSA37-YEJ90M4,SLSA37-YS63M4,SLSA37-YS71M4,SLSA37-YS80M4,SLSA37-YS90M4,SLSA37-YVP63M4,SLSA37-YVP71M4,SLSA37-YVP80M4,SLSA37-YVP90M4,SLSA37-YVPEJ63M4,SLSA37-YVPEJ71M4,SLSA37-YVPEJ80M4,SLSA37-YVPEJ90M4,DSZSA37-Y0.12KW,DSZSA37-Y0.18KW,DSZSA37-Y0.25KW,DSZSA37-Y0.A37KW,DSZSA37-Y0.55KW,DSZSA37-Y0.75KW,DSZSA37-Y1.1KW,DSZSA37-Y1.5KW,DSZSA37-Y63M4,DSZSA37-Y71M4,DSZSA37-Y80M4,DSZSA37-Y90M4,DSZSA37-YEJ63M4,DSZSA37-YEJ71M4,DSZSA37-YEJ80M4,DSZSA37-YEJ90M4,DSZSA37-YS63M4,DSZSA37-YS71M4,DSZSA37-YS80M4,DSZSA37-YS90M4,DSZSA37-YVP63M4,DSZSA37-YVP71M4,DSZSA37-YVP80M4,DSZSA37-YVP90M4,DSZSA37-YVPEJ63M4,DSZSA37-YVPEJ71M4,DSZSA37-YVPEJ80M4,DSZSA37-YVPEJ90M4,BSA37-Y0.12KW,BSA37-Y0.18KW,BSA37-Y0.25KW,BSA37-Y0.A37KW,BSA37-Y0.55KW,BSA37-Y0.75KW,BSA37-Y1.1KW,BSA37-Y1.5KW,BSA37-Y63M4,BSA37-Y71M4,BSA37-Y80M4,BSA37-Y90M4,BSA37-YEJ63M4,BSA37-YEJ71M4,BSA37-YEJ80M4,BSA37-YEJ90M4,BSA37-YS63M4,BSA37-YS71M4,BSA37-YS80M4,BSA37-YS90M4,BSA37-YVP63M4,BSA37-YVP71M4,BSA37-YVP80M4,BSA37-YVP90M4,BSA37-YVPEJ63M4,BSA37-YVPEJ71M4,BSA37-YVPEJ80M4,BSA37-YVPEJ90M4,GSA37-Y0.12KW,GSA37-Y0.18KW,GSA37-Y0.25KW,GSA37-Y0.A37KW,GSA37-Y0.55KW,GSA37-Y0.75KW,GSA37-Y1.1KW,GSA37-Y1.5KW,GSA37-Y63M4,GSA37-Y71M4,GSA37-Y80M4,GSA37-Y90M4,GSA37-YEJ63M4,GSA37-YEJ71M4,GSA37-YEJ80M4,GSA37-YEJ90M4,GSA37-YS63M4,GSA37-YS71M4,GSA37-YS80M4,GSA37-YS90M4,GSA37-YVP63M4,GSA37-YVP71M4,GSA37-YVP80M4,GSA37-YVP90M4,GSA37-YVPEJ63M4,GSA37-YVPEJ71M4,GSA37-YVPEJ80M4,GSA37-YVPEJ90M4,SCA37-Y0.12KW,SCA37-Y0.18KW,SCA37-Y0.25KW,SCA37-Y0.A37KW,SCA37-Y0.55KW,SCA37-Y0.75KW,SCA37-Y1.1KW,SCA37-Y1.5KW,SCA37-Y63M4,SCA37-Y71M4,SCA37-Y80M4,SCA37-Y90M4,SCA37-YEJ63M4,SCA37-YEJ71M4,SCA37-YEJ80M4,SCA37-YEJ90M4,SCA37-YS63M4,SCA37-YS71M4,SCA37-YS80M4,SCA37-YS90M4,SCA37-YVP63M4,SCA37-YVP71M4,SCA37-YVP80M4,SCA37-YVP90M4,SCA37-YVPEJ63M4,SCA37-YVPEJ71M4,SCA37-YVPEJ80M4,SCA37-YVPEJ90M4,MTNA37-Y0.12KW,MTNA37-Y0.18KW,MTNA37-Y0.25KW,MTNA37-Y0.A37KW,MTNA37-Y0.55KW,MTNA37-Y0.75KW,MTNA37-Y1.1KW,MTNA37-Y1.5KW,MTNA37-Y63M4,MTNA37-Y71M4,MTNA37-Y80M4,MTNA37-Y90M4,MTNA37-YEJ63M4,MTNA37-YEJ71M4,MTNA37-YEJ80M4,MTNA37-YEJ90M4,MTNA37-YS63M4,MTNA37-YS71M4,MTNA37-YS80M4,MTNA37-YS90M4,MTNA37-YVP63M4,MTNA37-YVP71M4,MTNA37-YVP80M4,MTNA37-YVP90M4,MTNA37-YVPEJ63M4,MTNA37-YVPEJ71M4,MTNA37-YVPEJ80M4,MTNA37-YVPEJ90M4,WXSA37-WSS0.12KW,WXSA37-WSS0.18KW,WXSA37-WSS0.25KW,WXSA37-WSS0.A37KW,WXSA37-WSS0.55KW,WXSA37-WSS0.75KW,WXSA37-WSS1.1KW,WXSA37-WSS1.5KW,WXSA37-WSS63M4,WXSA37-WSS71M4,WXSA37-WSS80M4,WXSA37-WSS90M4,WXSA37-WSSB63M4,WXSA37-WSSB71M4,WXSA37-WSSB80M4,WXSA37-WSSB90M4,WXSA37-WSSVP63M4,WXSA37-WSSVP71M4,WXSA37-WSSVP80M4,WXSA37-WSSVP90M4,WXSA37-WSSVPB63M4,WXSA37-WSSVPB71M4,WXSA37-WSSVPB80M4,WXSA37-WSSVPB90M4。伺服電機連接減速機
